PANASONIC ANNOUNCE THE LUMIX GH4 WITH INTERFACE UNIT TO SUPPORT QUAD-LINK SDI 4K VIDEO IN 4:2:2 WITH XLR AUDIO

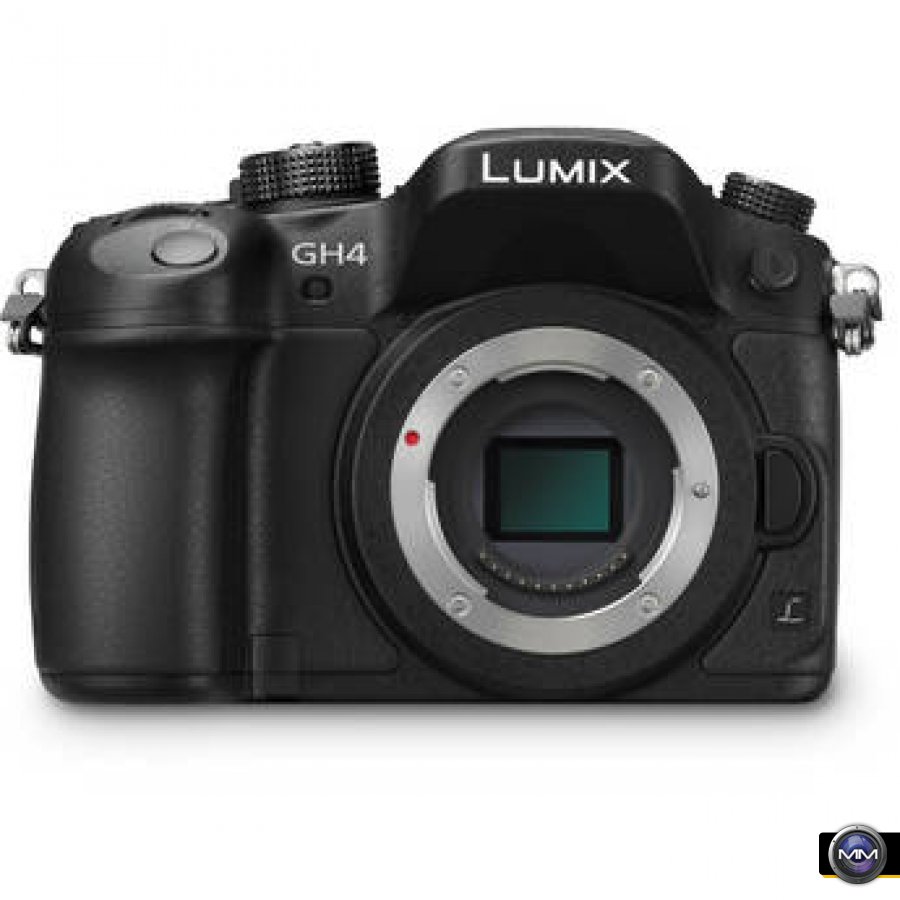

Panasonic Lumix DMC-GH4 Mirrorless Micro Four Thirds Digital Camera

16.05 MP Digital Live MOS Sensor
DCI 4K 4096×2160 at 24p
UHD 4K 3840×2160 at 30p/24p
Full HD up to 60p
3.0” 1,036k-Dot OLED Monitor
2,359K-Dot OLED Live View Finder
Support for 59.94p, 23.98p, 50p, & 24p
4:2:2 8-Bit or 10-Bit HDMI Output
High-Speed 49-Point Autofocus
Magnesium Alloy, Weather-Sealed Body

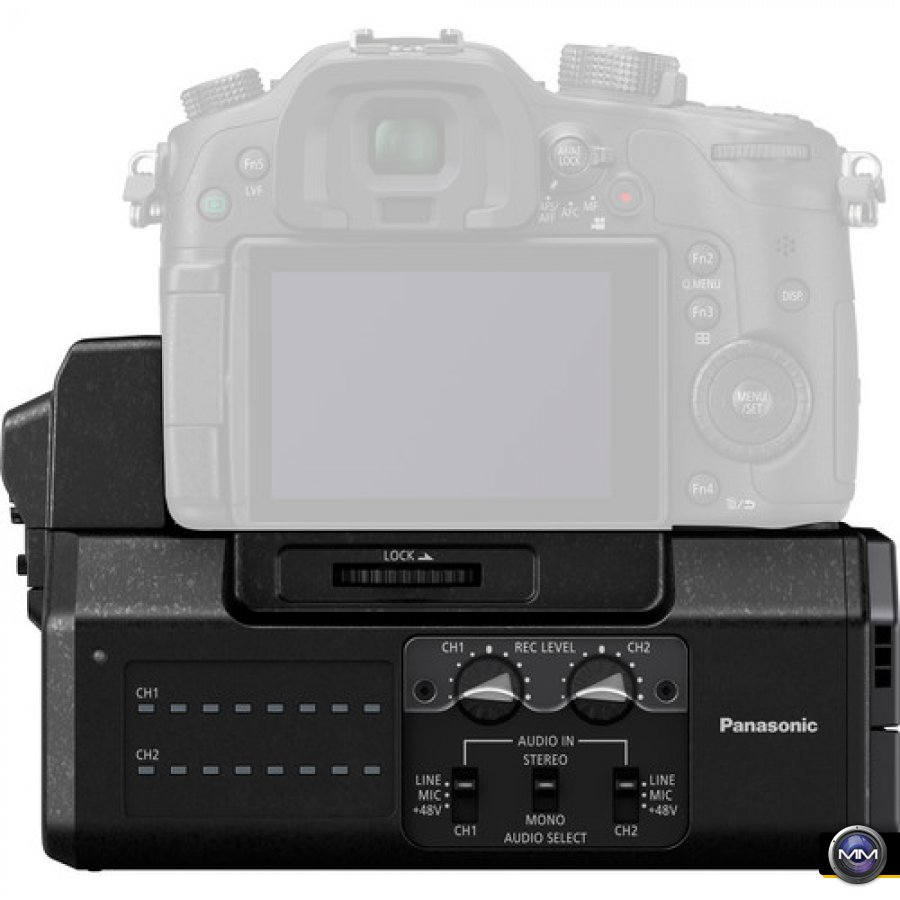

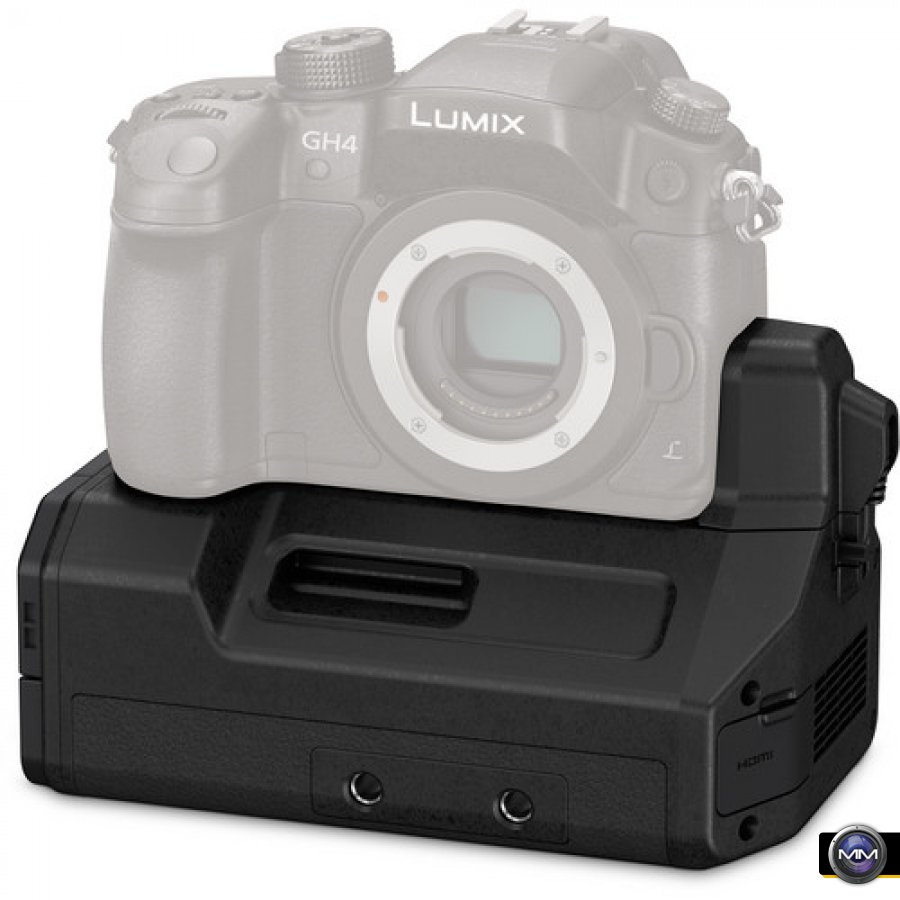

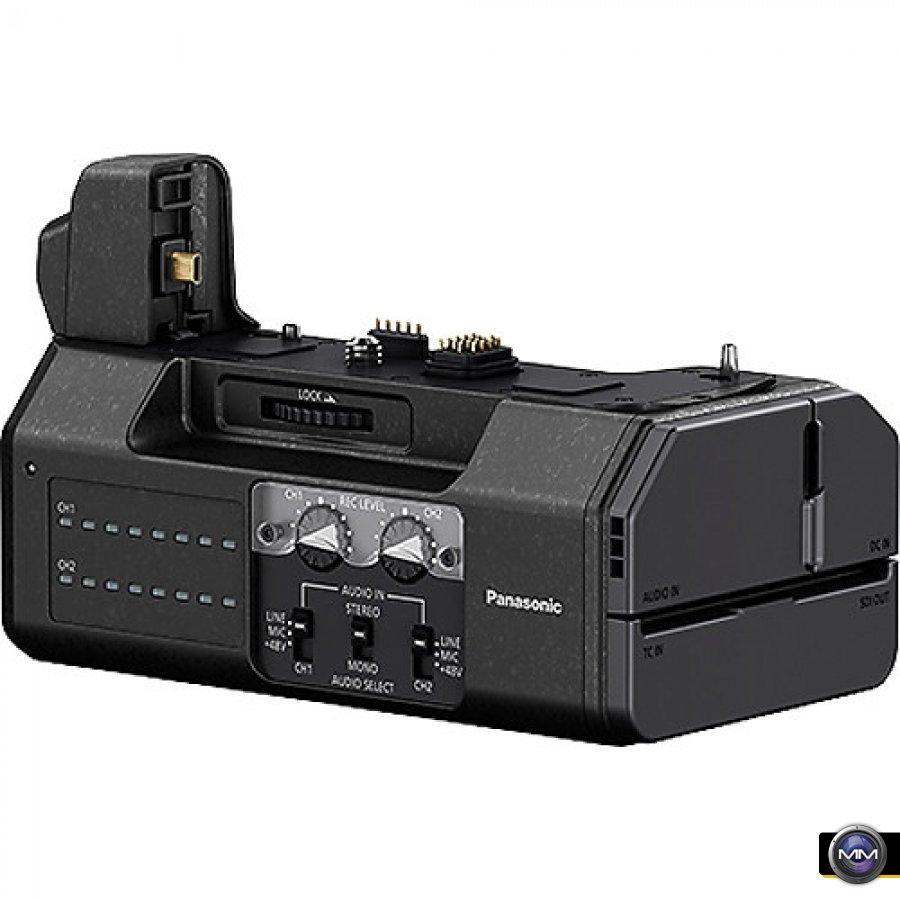

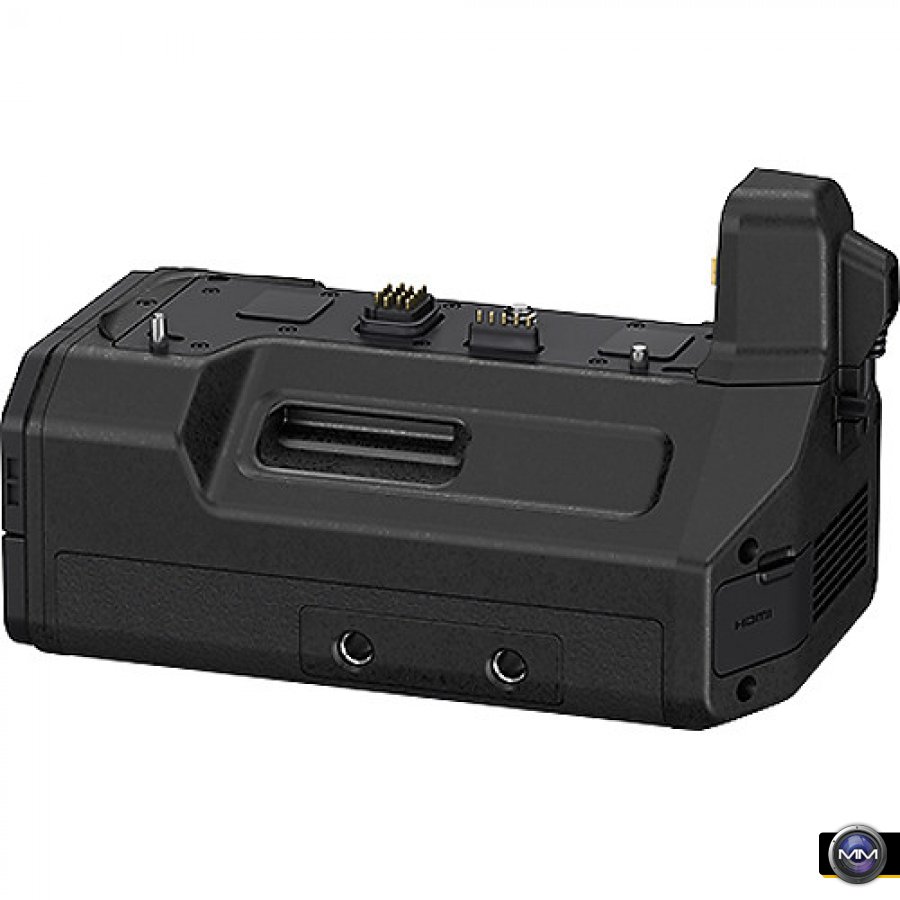

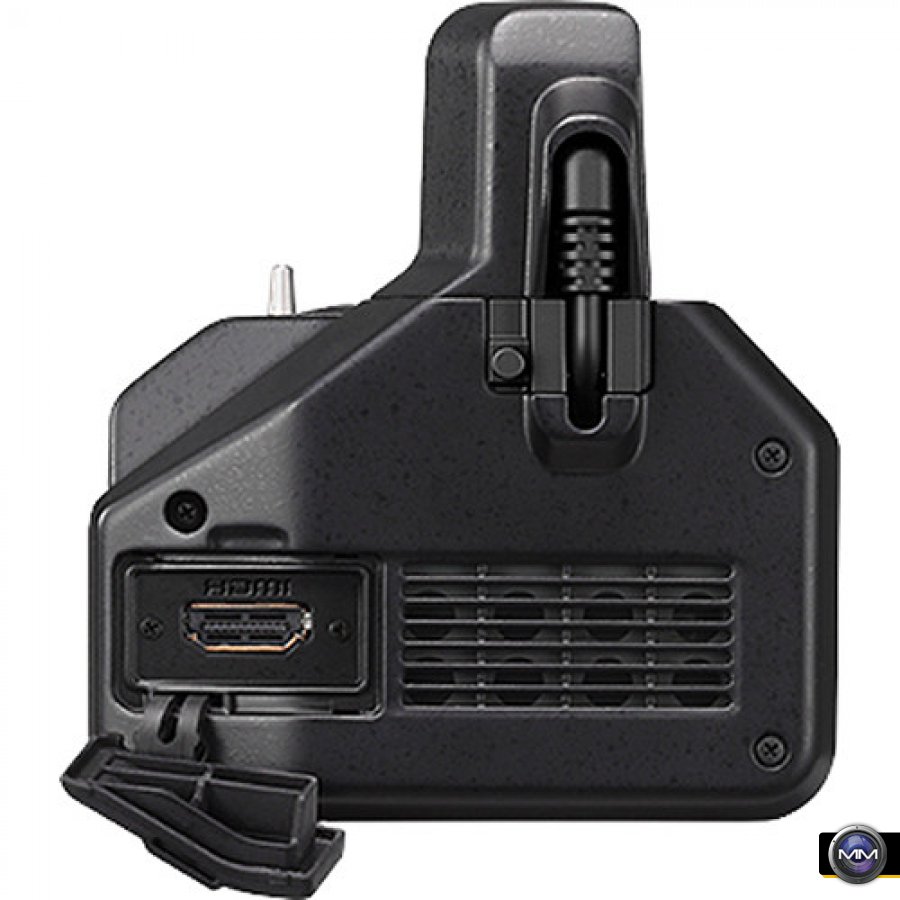

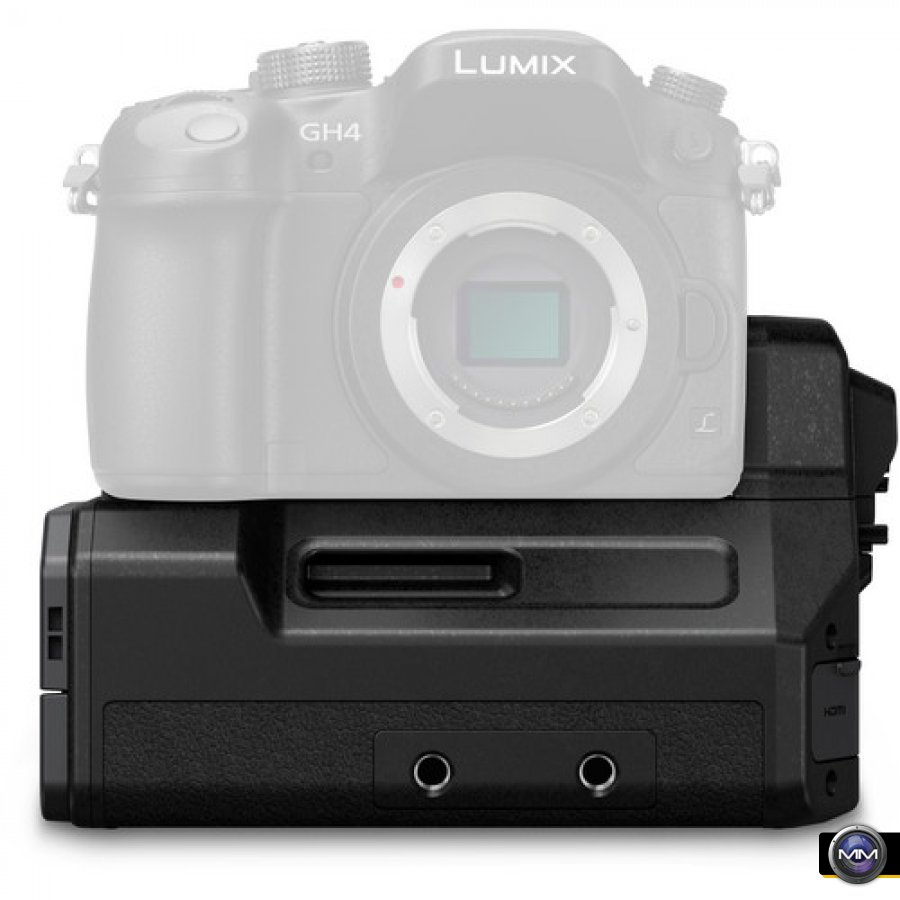

Lumix DMC-YAGH Interface Unit
The Lumix DMC-YAGH Interface Unit for GH4 from Panasonic is designed to give the Lumix DMC-GH4 camera the video, audio, and power connectivity required for professional video workflows. When attached to the GH4, the Interface Unit provides 2-channel monaural XLR inputs for line or condenser microphones, and gives you independent volume control of the left and right channels. There is also an audio level display monitor for each channel.When it comes to video outputs, the Interface Unit provides four 3G-SDI BNC connectors for Quad-Link SDI 4K video in 4:2:2 10-bit or 4:2:2 10-bit HD, both with timecode. The Interface Unit also has a BNC connector for timecode input, and converts the GH4’s micro HDMI output to a full-sized HDMI output. For power, a 4-pin XLR 12VDC input is available.Please note: When using 4:2:2/10-bit output, simultaneous video recording to an SDHC/SDXC memory card in the DMC-GH4 is not possible.
